A Stochastic Description
I should probably start by giving an introduction to this stochastic stuff. Thermodynamics is a topic a lot of us are familiar with. What happens in thermodynamics? We have something we want to study(a system) and everything else(the surroundings). In thermodynamics, we take large systems, large I mean systems with a large number of particles. A system with a small number of particles can’t help us glean information on macroscopic properties. We can’t measure the velocities of say even 100 particles for a large amout of time, and conclude anything useful. Rather, we observe large systems and infer their macroscopic properties, like Temperature and pressure. Our first stepping stone into understanding how we get from the microscopic description to the phenomenologically modeled thermodynamics, is statistical mechanics. For inferring stuff using statistical mechanics, we take some number of particles and then scale the system to reach thermodynamics.
Here, we are interested in a length scale between microscopic and macroscopic scales, the mesoscopic regime. Here, again the number of particles are quite large enough for particle by particle descriptions to be completely useless and the number of particles aren’t large enough for a thermodynamic description to make sense.
So here, we initially lay out how we model such systems. We take particles, but instead of following the particles trajectory and accounting for all the forces exerted, say from the collisions, the particle to particle interactions, temperature fluctuations and all other phenomenon a sane person can describe. So what we do here is chalk every force that can be to some random force following some rules. So we describe these systems, using Newton’s third alongwith a random force, often fancifully called the Langevin Equation. For further information you can refer to [1][3].
Stochastic Process
A stochastic process is a sequence of random variables where the indexing of the variables often carries the notion of time.

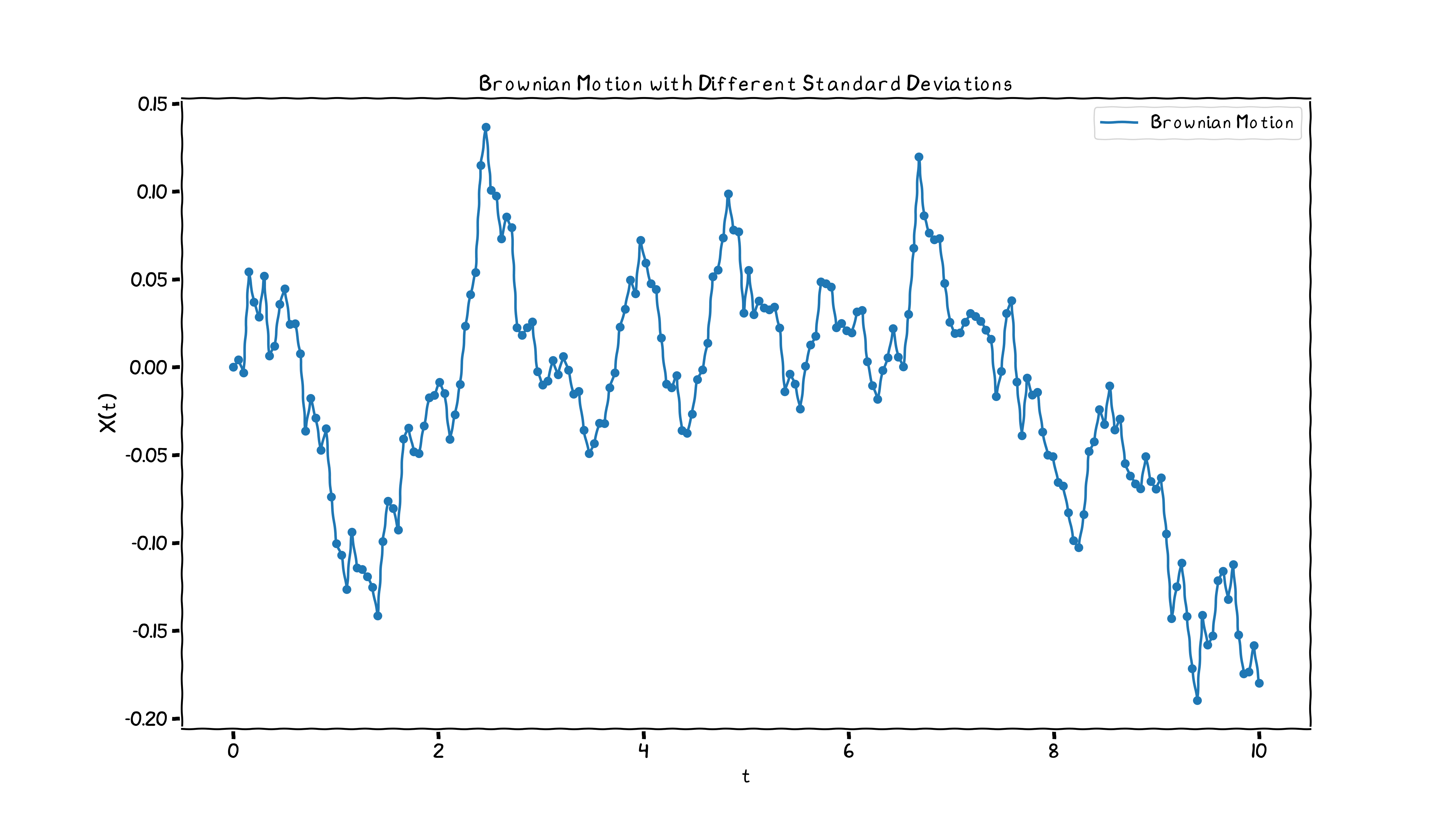

An example would be Brownian Motion, which is described by the Wiener process.
\[P(\hat{W}(t+\Delta t)=x | \hat{W}(t)=x’) = \frac{1}{\sqrt{2 \pi \Delta t}}\exp(-\frac{(x-x’)^2}{2 \Delta t})\]
Let’s see what this equation says. Suppose we have a particle moving in 1D, at a position \(x = x'\) at \(t = t_0\). Then the probability of finding the particle at some position \(x\) after some time \(\Delta t\), is described by a gaussian distribution \(N(x',\Delta t)\). This equation makes sense intuitively. The gaussian probability peaks at the mean \(x'\) and a measure of its spread is given by \(\Delta t\). Here is a small illustration,

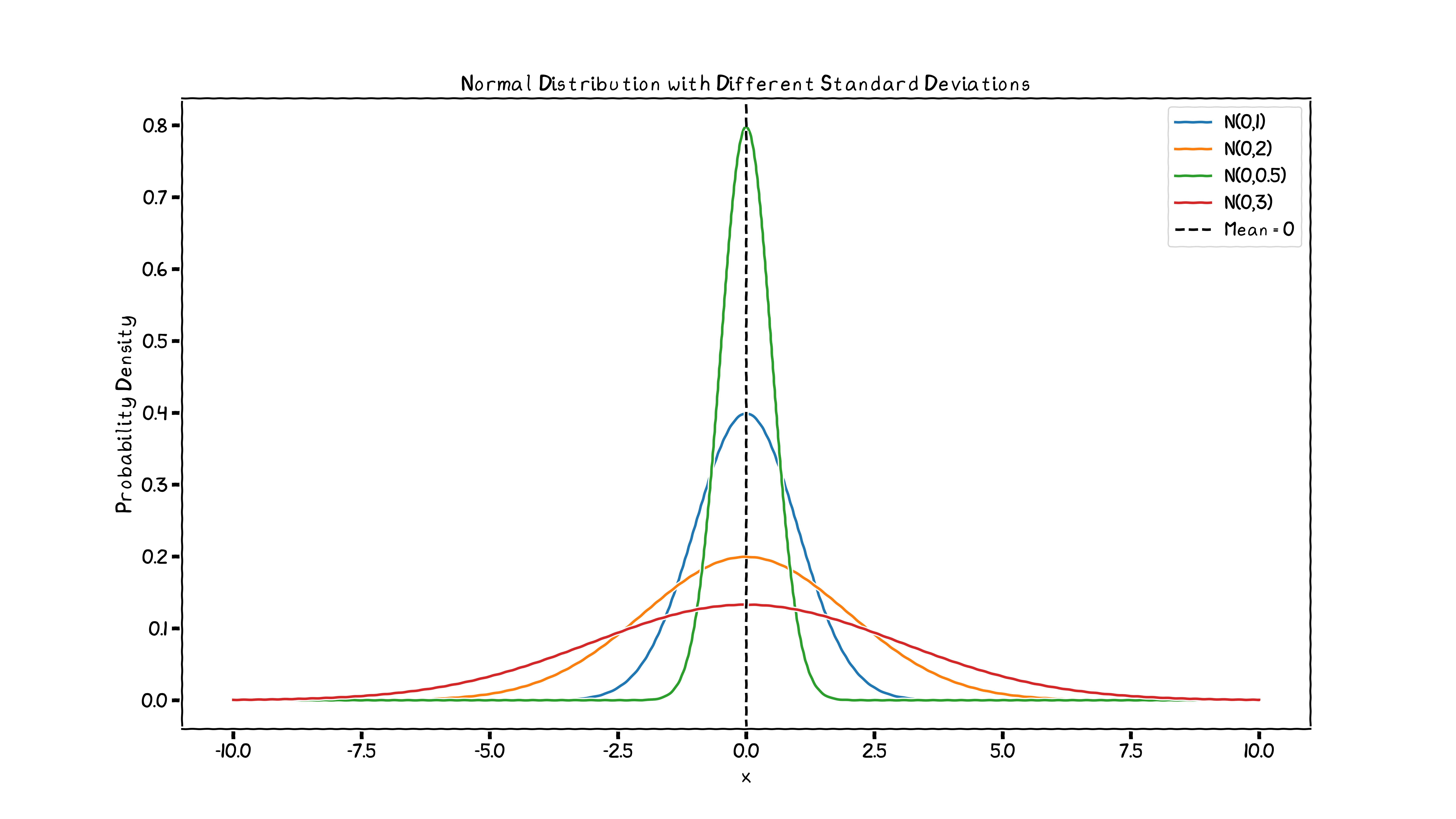

We can see that the width increases with increase in the standard deivation. This just means if we take a larger time step \(\Delta t\), the particle has more time to move to further and further distances, and the distribution flattens. Let’s see what the Wiener Process looks like, before we move onto the topic of this blog.
Markov Chains
Most of the physical processes that we study in classical statistical physics is modelled as Markov Chains.
Let \(\{X_n\}\) be a stochastic process. The markov property is defined as \[\mathbb{P}(X_{n+1}|X_n,X_{n-1},...,X_0) = \mathbb{P}(X_{n+1}|X_n)\] Any stochastic process satisfying the Markov property is called a Markov Chain.
Essentially the future of the system is independent of the past given the present state.
Continuous Time Markov Chains(CTMC)
These are markov chains with the index as time \(\{X(t)\}_t\). Let us define a state space as the set of all values \(S\) a random variable can assume. Then we use the notation
\[P(X(t) = s) \equiv P(s;t)\]We can rewrite the markov property as
\[P(s_n;t_n|s_{n-1};t_{n-1},s_{n-2};t_{n-2},...,s_0;t_0) = P(s_n;t_n|s_{n-1};t_{n-1})\]where \(s,s_i \in S ~ \forall i\).
Now using the theorem of total probability we can write the Chapman Kolmogorov equation as
\[P(s;t|s_0;t_0) = \sum_{s' \in S} P(s;t|s';t')P(s';t'|s_0;t_0)\] where \(t > t' > t_0\)
We now choose a time interval \(dt\) and rewrite the Chapman Kolmogorov equation, dropping the explicit dependence on \(x_0,t_0\)
\[P(s;t+dt) = \sum_{s' \in S} P(s;t+dt|s';t)P(s';t)\]Since this is an infinitesimal time interval, we can write the above equation as
\[P(s;t+dt|s';t) = \delta_{ss'} +Q_{ss'}dt + o(dt)\]where \(Q\) is the transition rate matrix.
Transition Rate Matrix
The transition rate matrix should satisfy the following conditions
-
\(Q_{ss'} \geq 0\) for \(s \neq s'\)
-
\(Q_{ss} = -\sum_{s' \neq s} Q_{ss'}\)
The first condition ensures that the transition rate is non-negative and the second condition essentially ensures that the probability of transitioning from a state \(s\) to any state is 1.
Thus we can write
\[\mathbb{P}(t+dt) = \mathbb{I} + Qdt\]where \(\mathbb{I}\) is the identity matrix.
We define \(k_{xx'}\) as the jump rate from state \(x'\) to \(x\). We thus define the elements of the transition rate matrix as
\[p(x;t+dt|x';t' ) = Q_{xx'} = k_{xx'} \quad \quad x \neq x'\]And the diagonal elements are thus given as
\[Q_{xx} = -\sum_{x' \neq x} k_{xx'}\]We also assume that the elements \(k_{xx'}\) do not change with time.
The change in probability of being in state \(x\) at time \(t\) is the inflow of probability from all other states which is \(k_{xx'}p(x';t)\) minus the outflow of probability \(k_{x'x}p(x;t)\). We can now write the master equation as
\[\frac{\partial p(x;t)}{\partial t} = \sum_{x' \in S} k_{xx'}p(x';t) - k_{x'x}p(x;t)\]This becomes clearer when we define the probability current.
Master Equations
These equations describe the time evolution of the system that are modelled as being in the a probabilistic combination of a set of states at any given time. These are phenomenologically modelled first order differential equations.
These are used in a variety of fields in physics, and other related
fields. These are used for studying birth and death processes,
non-equilibrium statistical mechanics, chemical reactions, and a whole
lot more.
The most common one that we see is the one used here is of the form
where \(\mathbb{A}\) is the matrix of connections and \(\bold{p}\) is the probability distribution column vector.
Probability Current
The probability current is defined as the flow of probability from state \(x'\) to state \(x\). We define the probability current as \[J_{xx'} = k_{xx'}p(x';t) - k_{x'x}p(x;t)\]
The master equation can now be written as
\[\frac{\partial p(x;t)}{\partial t} = \sum_{x' \in S} J_{xx'}\]A bit of physics coming up ahead \(:)\)
If for any allowed jump \(x \rightarrow x'\)(i.e. \(k_{xx'} > 0\)), the reverse jump \(x' \rightarrow x\) \((k_{x'x}>0)\) is also allowed, then the system is said to be microscopically reversible.
Jump Networks
These systems are quite often represented as jump networks, where the nodes of the graph represent the states \(x\) and the arrows(edges) \(x' \rightarrow x\) represent the allowed jumps i.e. the jumps with non-zero transition rates(\(k_{xx'}>0\)).
The jump networks dealt with in physics are strongly connected. That is, given any two states \(x\) and \(x'\), there is a non-zero probability of transitioning from \(x\) to \(x'\) in a finite number of steps.
This property has some physical justification. Coupled together with microscopic reversibility, this property ensures that the graphs aren’t disconnected. Disconnected graphs often lead to systems with non-interacting components, which can be studied independently reducing to the strongly connected graph.
Strongly connected graphs also posses a property called Irreducibility. Irreducibility is a necessary condition for the Perron Frobenius theorem to hold.

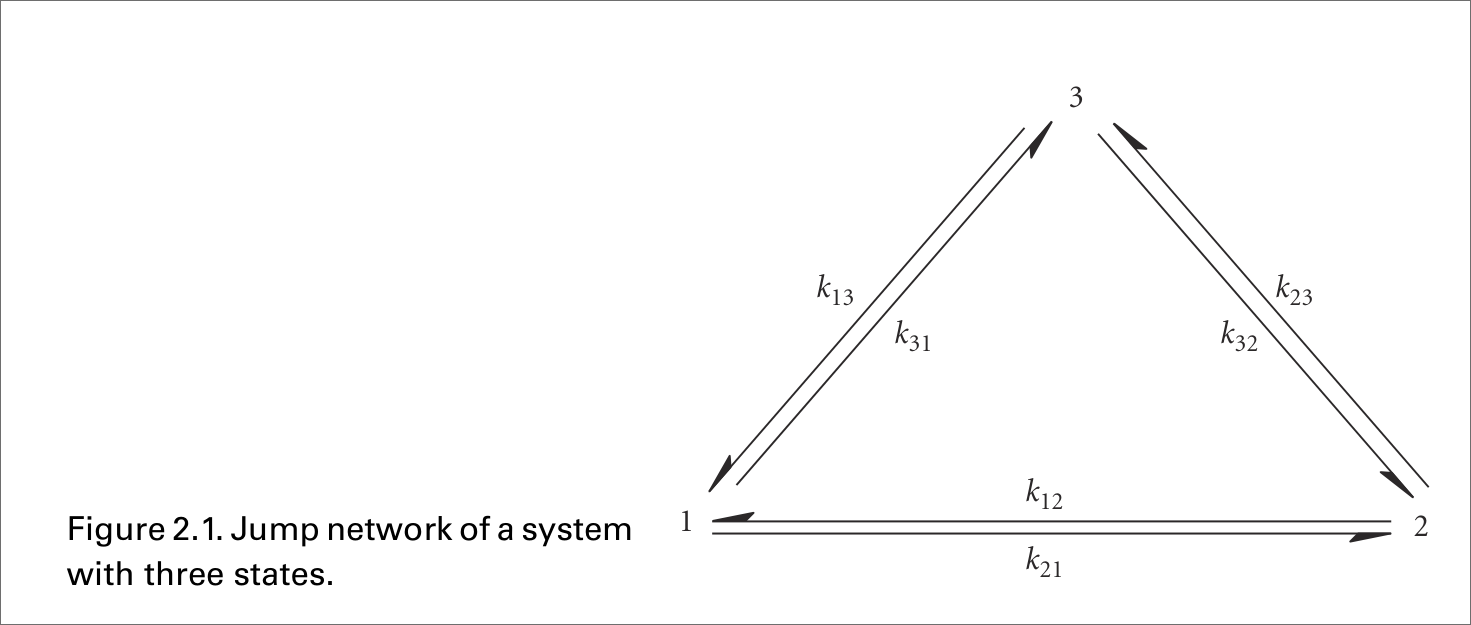

Here are is an example of a jump network :
![Source : [1]](jumpnetwork.png?width=800px)
Steady State & Equilibrium Distribution
Conditions
Steady state and equilibrium distribution are often used interchangeably. However, they are defined quite differently. The condition for a system to be in equilibrium is a bit more constrained than that of a steady state.
The necessary condition for both to hold is that the probability of being in a state \(x\) at time \(t\) is independent of time. Thus, essentially our master equation equates to \(0\).
\[\frac{\partial p^{st}(x)}{\partial t} = \sum_{x' \neq x} J_{xx'} = 0\]We will show that under certain conditions, the system relaxes to a stationary state.
\[\lim_{t \to \infty} p(x;t) = p^{st}(x)\]Detailed Balance Condition
The independence of \(p(x)\) on time can be ensured by the following conditions:
-
\(\sum_{x' \neq x} J_{xx'} = 0\)
-
\(J_{xx'} = 0\) for all states \(x,x'\)
Condition 1 is the condition for a steady state, while condition 2 is the condition for equilibrium.
The detailed balance condition is defined as \[k_{xx'}p^{st}(x') = k_{x'x}p^{st}(x) \quad \forall ~x,x' \in S\] \[J_{xx'} =0 \quad \forall x,x' \in S\]
When the jump networks satisfy the detailed balance condition, the system is said to be in equilibrium.
Perron Frobenius Theorem
Irreducibility
A matrix \(\mathbb{A}\) is said to be reducible when there exists a Permutation matrix \(P\) such that \[P^TAP = \begin{pmatrix} \mathbb{X}& \mathbb{Y}\\ 0 & \mathbb{Z} \end{pmatrix}\] where \(\mathbb{X}\) and \(\mathbb{Z}\) are square matrices.
We can easily see that if all the elements of \(\mathbb{A}\) are positive, then the matrix is irreducible. This is a necessary condition for the Perron Frobenius theorem to hold.
We can reframe the Irreducibility problem in terms of graphs.
- The graph \(G(\mathbb{A})\) of a matrix \(\mathbb{A}_{n \times n}\) is a directed graph on \(n\) nodes \({N_1,...,N_n}~\) in which there is a directed edge from \(N_i\) to \(N_j\) if and only if \(A_{ij} \neq 0\). - A graph \(G(\mathbb{A})\) is called strongly connected if for every pair of nodes \(N_i\) and \(N_j\) there is a directed path from \(N_i\) to \(N_j\). - A matrix \(\mathbb{A}\) is irreducible iff the graph of the matrix is strongly connected.
We have already assumed that the jump network is strongly connected.

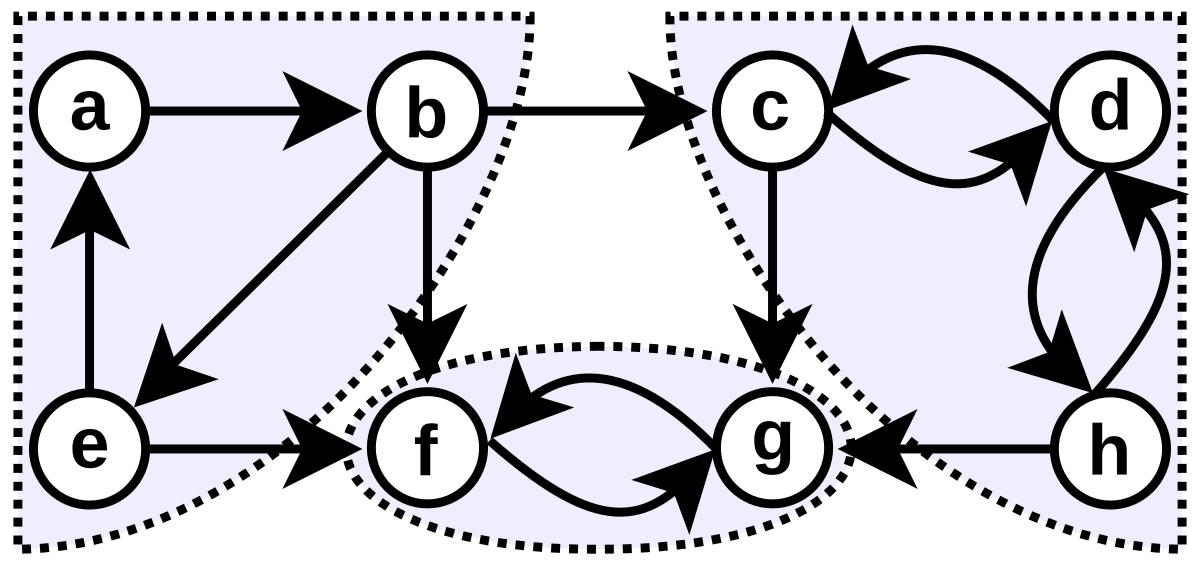

Strongly Connected Graphs
We can also think of Irreducibility from the point of view of the markov
chains. Two states are said to be communicating if there is a
non-zero probability of transitioning from one state to the other in a
finite number of steps. This is an equivalence relation and thus
partitions the state space into equivalence classes.
The markov chain is said to be irreducible if there is only one
equivalence class, which is the state space of the Markov chain.
Here in our jump networks any state can be reached from any other state in a finite number of steps. Thus our markov chain is irreducible.
Primitive Matrices
- A matrix \(\mathbb{A}\) is called primitive if there exists a positive
integer \(k\) such that \(\mathbb{A}^k\) is a positive matrix (i.e. all
elements are positive).
- A matrix \(\mathbb{A}\) is primitive if it has only one eigenvalue on
the spectral circle.
- A non-negative irreducible matrix \(\mathbb{A}\) is primitive with
\(r = \rho(\mathbb{A})\) iff
\(\lim_{k \rightarrow \infty} \)\((\mathbb{A} / r)^k\) exists, in which case
\[\lim_{k \to \infty} \left(\frac{\mathbb{A}}{r}\right)^k = \frac{p q^{T}}{q^{T} p} > 0\]
where \(p\) and \(q\) are the Perron vectors for \(\mathbb{A}\) and
\(\mathbb{A}^T\) respectively.
The Perron Frobenius Theorem
Let \(\mathbb{A}\) be an irreducible matrix.
- There exists a positive real number \(\lambda\) such that
\[\mathbb{A}\pi = \lambda \pi\] called the Perron-Frobenius
eigenvalue. Moreover, the eigenvalue is the spectral radius of the
matrix.
- The eigenspace corresponding to the Perron-Frobenius eigenvalue is
one-dimensional, that is, the corresponding eigenvector is
non-degenerate.
- Then there exists a unique probability vector \(\pi\) such that
\[\mathbb{A}\pi = \lambda \pi\] called the Perron vector. Moreover,
the vector \(\pi\) is strictly positive.
- Furthermore, there are no non-negative eigenvectors of \(\mathbb{A}\)
except for all positive multiples of \(\pi\).
Stationary State Distribution
Let \(P\) be the transition probability matrix for an irreducible Markov chain and let \(\pi\) be the perron vector for the matrix \(P\). - The kth step probability matrix is given by \(P^k\) since the \((i,j)\)th entry of \(P^k\) is the probability of transitioning from state \(j\) to state \(i\) in exactly \(k\) steps. - The \(k\)the step distribution is given by \(p(k) = P^k p(0)\) - If \(\bold{P}\) is primitive and if \(e\) denotes the column of all ones, then the limit \[\lim_{k \to \infty} \bold{P}^k = \pi e^T \quad \quad \quad \text{and} \quad \quad \lim_{k \to \infty} p(k) = \pi\]
Proof
All stochastic matrices \(\bold{P}\) have a spectral radius
\(\rho(\bold{P}) =1\). All column sums equal to 1. Thus, \(e\) is an
eigenvector of \(\bold{P}^T\) with eigenvalue \(1\), where \(e\) is the column
vector with all ones in its entries. We also have
\(\lVert{\bold{P}}\rVert_{1} = 1\). Using the fact that
\(\rho(\star) \leq \lVert\star \rVert\) for every matrix norm(See [2]),
we get that
We know that \(\bold{P}\) is primitive with \(\rho(\bold{P}) = 1\), we know that
\[\lim_{k \to \infty} \bold{P}^k = \frac{p q^T}{q^T p}\]where \(p\) and \(q\) are the perron vectors for \(\bold{P}\) and \(\bold{P}^T\) respectively. The perron vector for \(\bold{P}^T\) is \(e\) and let the perron vector for \(\bold{P}\) be \(\pi\).
We thus have,
\[\lim_{k \to \infty} \bold{P}^k = \frac{\pi e^T}{e^T \pi}\]From the conservation of probability we have that \(\sum_i \pi_i =1\), we have that \(e^T\pi = \sum_i \pi_i = 1\).Thus we have
\[\lim_{k \to \infty} \bold{P}^k = \pi e^T\]Now we have
\[\lim_{k \to \infty} p(k) = (\lim_{k \to \infty} \bold{P}^k) p(0)= \pi e^Tp(0)\]Again \(e^Tp(0) = \sum_i p_i(0) = 1\). This leads to
\[\lim_{k \to \infty} p(k) = \pi\]Note that the stationary limit is independent of the initial distribution \(p(0)\) here.
We now actually verify that \(\pi\) is indeed the stationary distribution. Let us recast the master equation into matrix form.
\[\frac{d p(t)}{dt} = Q p(t) = \frac{1}{dt}(\bold{P}- \mathbb{I}) p(t)\]where \(Q\) is the transition rate matrix. Now we have
\[(\bold{P}- \mathbb{I})\pi = \bold{P}\pi - \pi = \pi -\pi = 0\]Thus the infinite time limit of the probability distribution is indeed the stationary distribution.
\[\Rightarrow \frac{d \pi }{dt} = 0\]Now the stationary distribution must be unique since the Perron root of any irreducible matrix has a one dimensional eigenspace. Thus the eigenvector must be unique due to the conservation of probability.
\[ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ \square\]SIDE NOTE: After completing the presentation, I found a proof that doesn’t use Perron Frobenius theorem. However, that only proves it for a transition rate matrix with all positive entries.[1]
for Imprimitive matrices Let \(P\) be the transition probability matrix for an irreducible Markov chain and let \(\pi\) be the perron vector for the matrix \(P\). - If \(\bold{P}\) is imprimitive and if \(e\) denotes the column of all ones, then the limit \[\lim_{k \to \infty} \frac{\mathbb{I} + \bold{P}+ ... +\bold{P}^{k-1}}{k} = \pi e^T\] and \[\lim_{k \to \infty} \frac{p(0) + p(1) + ...+p(k-1)}{k} = \pi\]
We use Cesaro sums to define the stationary state probability distribution. However, we won’t deal with it here.
Graph Theory
Preliminaries
-
A graph is a collection of vertices and edges. The edges connect the vertices.
-
The degree of a vertex is the number of edges connected to it.
-
A walk is a sequence of vertices connected by edges.
-
A trail is a walk with no repeated edges.
-
A cycle is a non-empty trail that starts and ends at the same vertex.
-
A connected graph is a graph where there is a path between every pair of vertices.
Trees
A tree is a connected graph with no cycles. Here is one property of a tree that we plan to use later.\ A tree with \(n\) vertices has \(n-1\) edges.
Handshaking Lemma
The sum of the degrees of all the vertices of a graph is equal to twice the number of edges.\ \[\sum_{i=1}^{n} d_i = 2|E|\] where \(d_i\) is the degree of the \(i\)th vertex and \(|E|\) is the number of edges.
An "obvious" Theorem
A tree has at least two vertices of degree 1. **Proof**\ Every tree has \(n-1\) edges, so the sum of the degrees of all vertices of any tree has to be \(2(n-1)\). But if there are fewer than two vertices of degree one, then the sum of the degrees of all vertices must be at least \(2(n-1)+1\), which is a contradiction.
Equilibrium Distribution
Trees
Equilibrium dist. for trees Let the jump network be a tree. Then the stationary state distribution is the equilibrium distribution.
Proof
We know that there exists at least \(2\) vertices with degree \(1\). Let us
label one of them as \(x\). Thus, for this vertex
\(\sum_{x' \neq x} J_{xx'} = 0\) for all states \(x'\) connected to it,
under the stationary distribution. Since this is only connected to
another vertex say \(a\), We have \(J_{xa} = 0\). We can then remove the
vertex \(x\) and the edge \(\{x,a\}\). This is still a tree, so we can do
this iteratively. We can reach a point where we have only one vertex
left. For the lone vertex, the detailed balance condition is trivially
satisfied. Thus, the equilibrium distribution is the stationary
distribution.
Cyclic Networks
A cyclic network is a graph with a cycle in it.
For cyclic networks, the system admits an equilibrium distribution if for any sequence states \((x_0,...,x_n)\) all different from each other \[k_{x_0x_1}k_{x_1x_2}...k_{x_{n-1}x_n}k_{x_nx_0} = k_{x_0x_n}k_{x_nx_{n-1}}...k_{x_1x_0}\]
We can see that non-vanishing stationary currents can only survive in loops. If we allow for all cycles the forward and back jump rates to be equal, we can then allow for the balance of probability currents.
Note
For cyclic networks, the system admits an equilibrium distribution if for any sequence states \((x_0,...,x_n)\) all different from each other \[k_{x_0x_1}k_{x_1x_2}...k_{x_{n-1}x_n}k_{x_nx_0} = k_{x_0x_n}k_{x_nx_{n-1}}...k_{x_1x_0}\]
Note that this also includes the acyclic cases as well. For all sequences \((x_0,...,x_n)\) that is not a cycle with \(x_0\) we get \(k_{x_0 x_n} = k_{x_n x_0} = 0\). Thus, this condition is trivially satisfied for acyclic networks.
